HD Ramps 2 Bunk Load Leveler / 4 Ramp System 16'x20" for 20" H Step Deck Trailers
Looking to revolutionize how you manage cargo on your 20" high step deck trailer? The 16' L x 20" W 2 Bunk Load Leveler / 4 Ramp System is engineered to enhance your loading capabilities, offering a robust 23,500 lbs. per axle capacity. This system not only simplifies loading processes but also ensures maximum stability and safety for your cargo, transforming your trailer into a more versatile and efficient cargo-handling powerhouse.
Comprehensive Specifications
-
Length: 2x8 feet
-
Width: 20 inches
-
Height: 5 inches
-
Weight: 506 lbs.
-
Load Capacity: 23,500 lbs. per axle
-
Material: High-strength Aluminum
-
Manufacturing: Proudly made in the USA by HD Ramps
Advanced Features for Optimal Performance
This cutting-edge load leveling system is equipped with superior features that enhance your trailer's functionality:
Versatile Ramp and Load Leveler Design
-

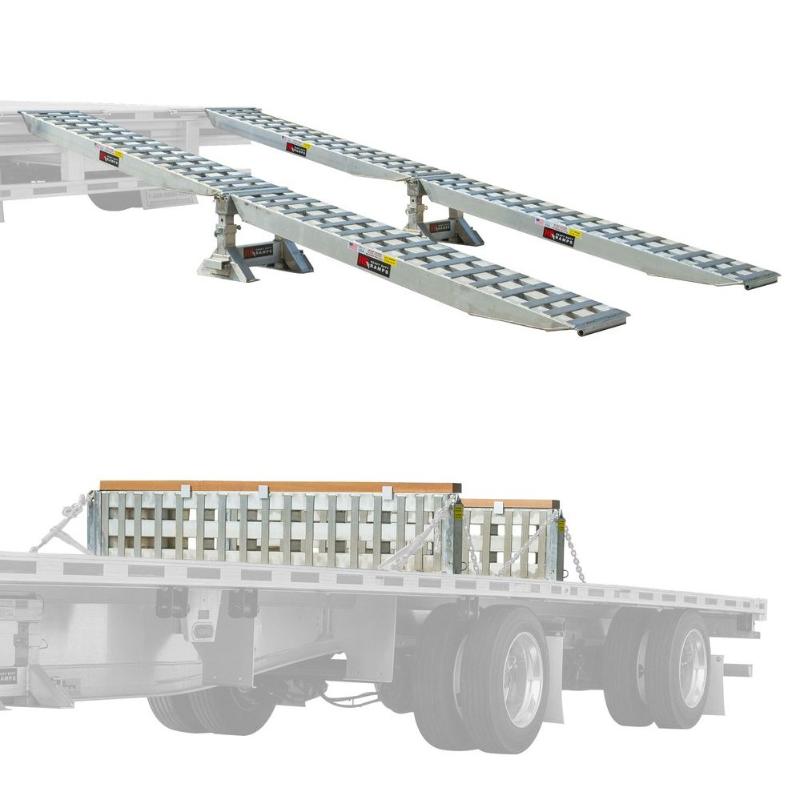

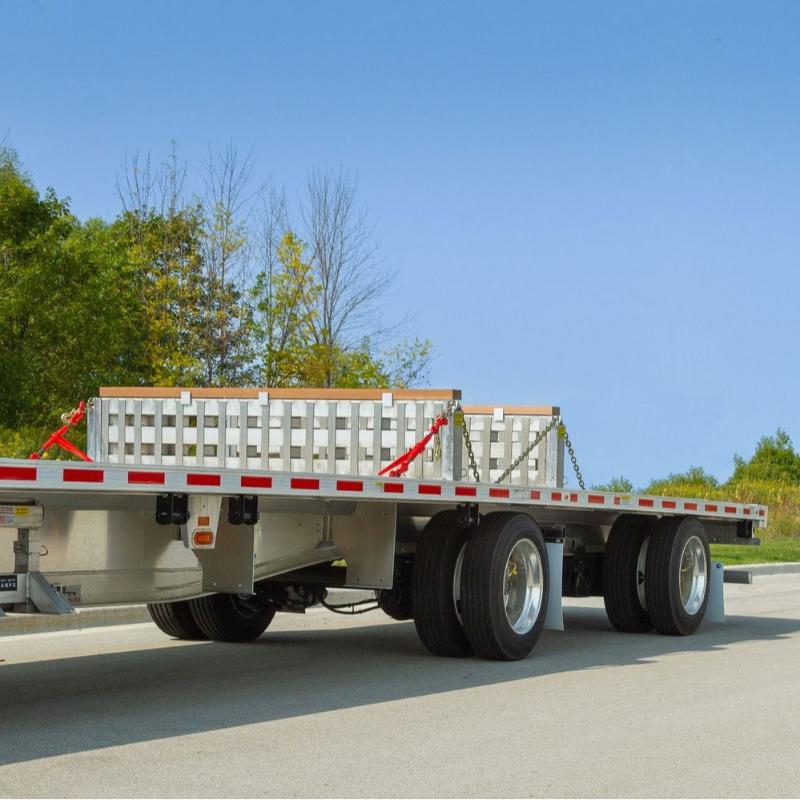

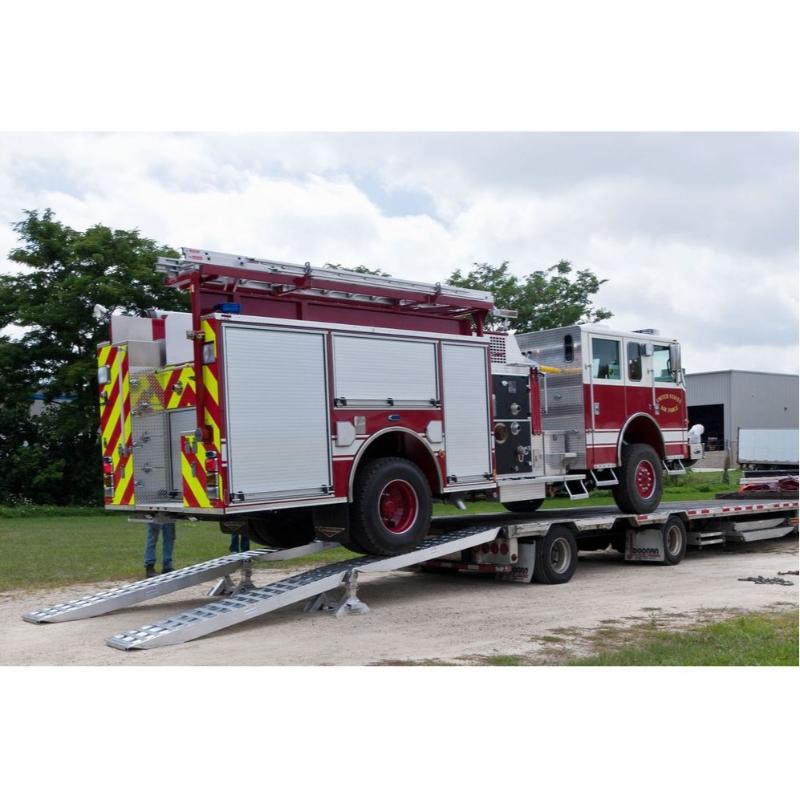

Multi-Functional: Use as straight ramps for easy loading or convert into load levelers to stabilize the load across the trailer deck.
-

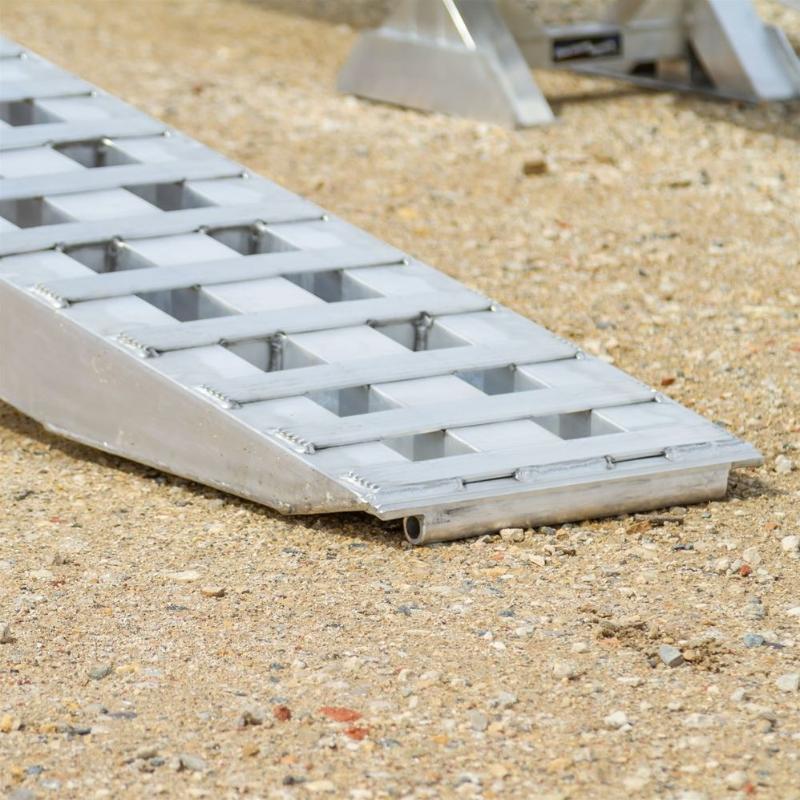

Custom Fit: Adjustable stakes and simple pin-on ends ensure seamless compatibility with all 102" wide step deck trailers with a 20" drop, requiring no modifications.
Enhanced Stability and Safety
-

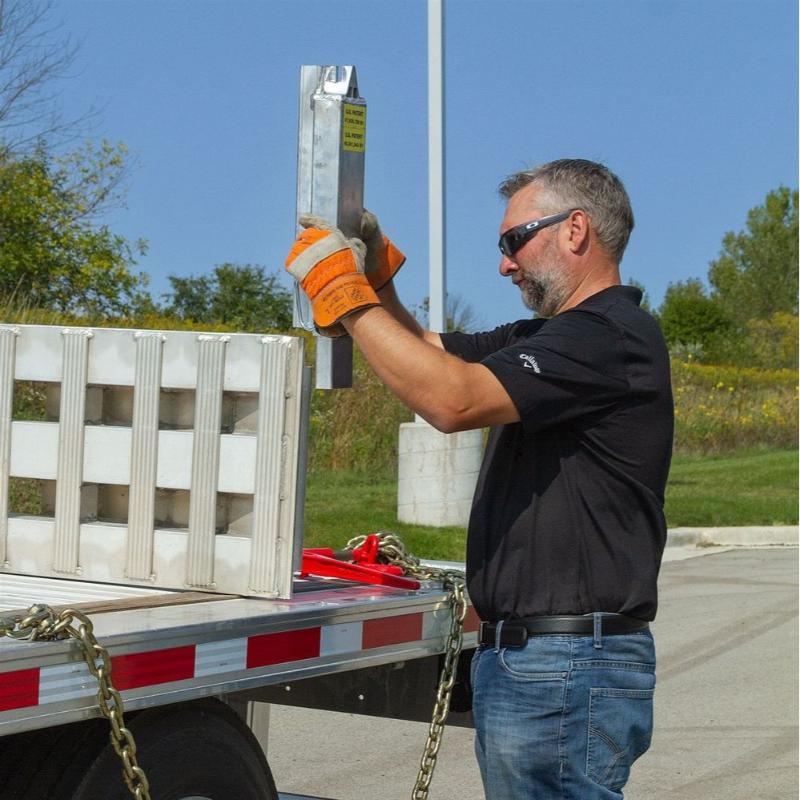

Secure Fixation: Four stake pocket supports firmly lock the system in place on your trailer, minimizing risk during abrupt stops or failures.
-
Lumber Clip Security: Six included lumber clips keep cargo securely fastened, reducing the risk of damage during transit.
Robust Construction and All-Weather Capability
-

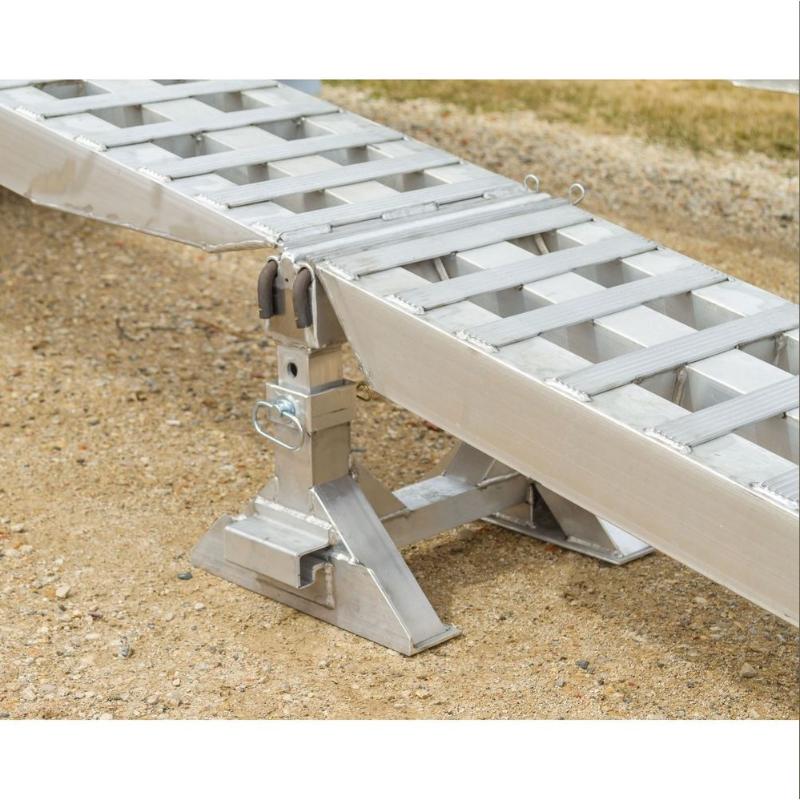

Support Stands: Two adjustable support stands provide extra stability for heavy loads, essential during the loading and unloading process.
-
All-Weather Traction: Ramps feature a high-traction surface ensuring reliable use under various weather conditions.
Dedication to Safety and Reliability
Our system is designed not only for efficiency but also for the utmost safety, verified by US Patents #8347439 and #7930788. Constructed from lightweight yet durable aluminum, each component is manageable and set up is straightforward, supporting substantial weight capacities safely.

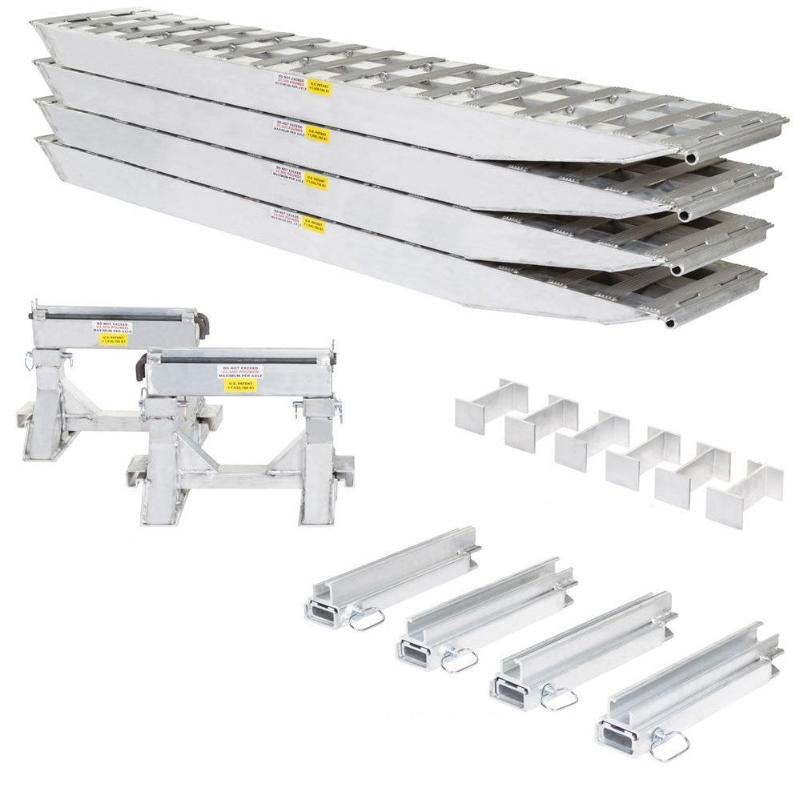

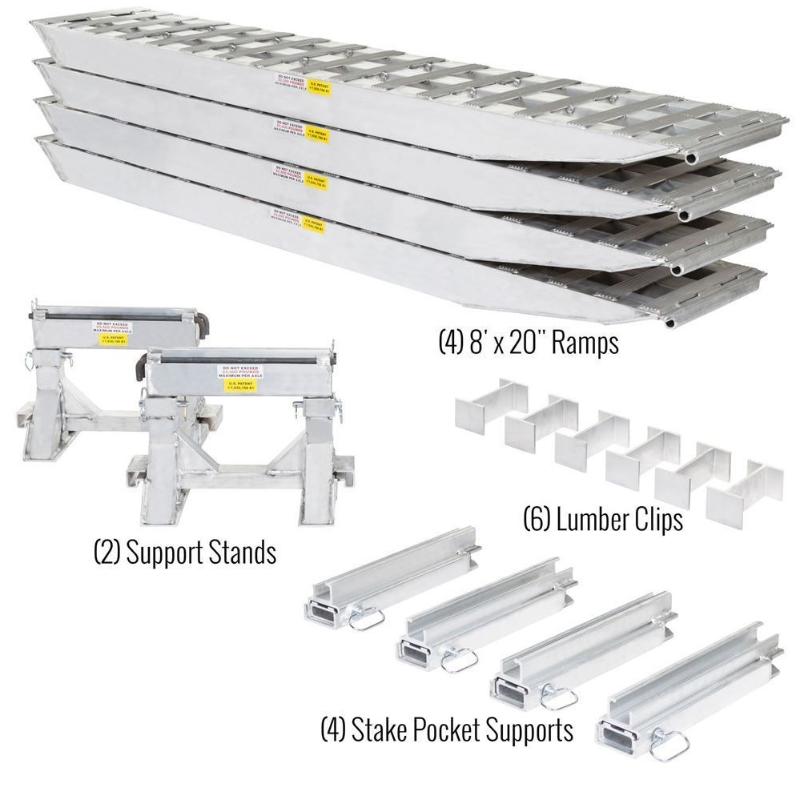

What’s Included in Your Kit?
- Four 8-foot Aluminum Ramps with Pin-on Ends
- Four Stake Pocket Supports
- Six Lumber Clips
- Two Adjustable Ramp Support Stands
Usage Guidelines
-
Load Capacity: Always adhere to the 23,500 lbs. per axle limit to ensure safety and maintain the integrity of your ramp system.
-
Recommended Lumber: Use only specific 5" wide lumber (e.g., 2x6's precisely cut) for load leveling, ensuring a stable and protected load platform.
-
Appropriate Vehicles: Ideally suited for 102” wide step deck trailers with a 20” upper step drop. Avoid use with vehicles that have mounted cranes, forklifts, or steel-tracked vehicles.
As an authorized dealer for HD Ramps, we guarantee a product that meets rigorous standards for quality and safety. Enhance your trailer's functionality today—add our 16' L x 20" W 2 Bunk Load Leveler / 4 Ramp System to your cart and take advantage of unparalleled efficiency and security in your loading operations!
