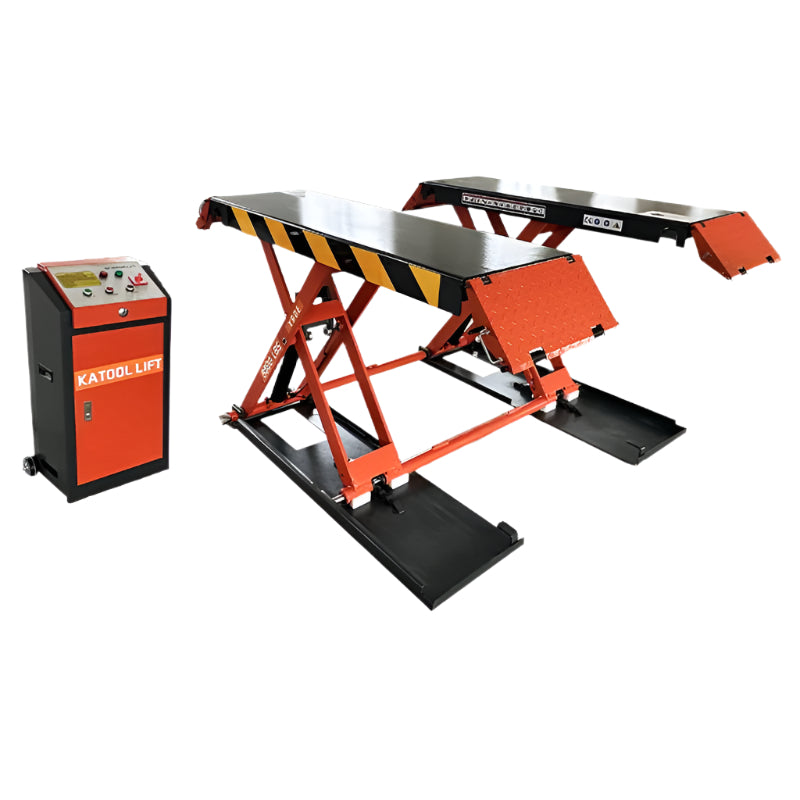

Transform Your Garage with the KATOOL 8000 lbs Mid-Rise Scissor Lift - The Ultimate Auto Elevation Solution
Specifications:
- Motor: 110V/220V, 60Hz, 1Ph, 3.0HP (2.2KW)
- Lifting Capacity: 8000LBS (3650kg)
- Maximum Lifting Height: 47¼ inches (1200mm)
- Lowered Height: 4²¹/₆₄ inches (110mm)
- Lifting Time: 30 seconds
- Platform Width: 20⁵⁵/₆₄ inches (530mm)
- Platform Length: 81½ inches (2070mm)
- Width between Platforms: 32⁹/₃₂ inches (820mm)
- Total Length: 81½ inches (2070mm)
- Air Supply Requirement: 87-116 psi (6-8 bar)
- Product Dimensions: 83.86 x 75.2 x 47.24 inches (2130 x 1910 x 1200mm)
- Product Weight: 1179 lbs (535kg)
- Warranty: 1-Year Limited
Tired of crawling around on cold, hard concrete or struggling with wobbly jack stands that make you question your safety? The KATOOL X90E Mid-Rise Scissor Lift completely transforms your automotive maintenance experience by providing rock-solid, professional-grade lifting power that brings vehicles to a comfortable working height in just 30 seconds. Unlike traditional floor jacks that offer limited access and questionable stability, this powerful 8000-pound capacity scissor lift creates a stable, open workspace that allows complete access to a vehicle's undercarriage, wheels, brakes, and suspension components while keeping you safely on your feet. After installing this game-changing piece of equipment, you'll wonder how you ever managed without it – no more backaches from awkward positions, no more safety concerns with overextended jack stands, and no more limitations on the maintenance tasks you can tackle. The satisfaction of having professional-grade equipment in your own garage creates confidence to take on bigger projects, knowing you have the same caliber of lifting equipment trusted by professional shops nationwide. What once seemed like challenging weekend projects suddenly become straightforward tasks when vehicles are positioned at the perfect working height.
Professional-Grade Construction Built for Serious Automotive Enthusiasts
The KATOOL X90E stands apart from lighter-duty lifts through its robust construction and thoughtful design features:
With an impressive 8000-pound (3650kg) capacity, this powerhouse handles everything from compact cars to full-size trucks and SUVs with complete confidence. This substantial lifting capability provides the versatility needed for multi-vehicle households or shops that service diverse vehicle types. Unlike lighter-capacity lifts that limit your options, the X90E accommodates virtually any passenger vehicle on the road today.
The ultra-low 4²¹/₆₄-inch (110mm) collapsed height allows easy positioning under even lowered vehicles while still providing an impressive 47¼-inch (1200mm) maximum lift height. This exceptional range of motion delivers the perfect working position for virtually any maintenance task, from oil changes to complex suspension work. The low profile eliminates the need for expensive approach ramps that take up valuable floor space.
The generous platform dimensions - 81½ inches (2070mm) in length and 20⁵⁵/₆₄ inches (530mm) in width - provide stable support across a vehicle's strongest lifting points. The 32⁹/₃₂-inch (820mm) spacing between platforms accommodates a wide range of vehicle widths while providing excellent access to central undercarriage components. This thoughtful sizing reflects decades of automotive lift engineering experience.
Electric Power with Pneumatic Safety Features
The X90E combines the convenience of electric operation with sophisticated safety systems:
The powerful 3.0HP (2.2KW) electric motor connects to standard 110V outlets (with 220V capability) for quick, smooth lifting operations. This robust power system raises even heavy vehicles to full height in approximately 30 seconds, dramatically improving shop efficiency compared to manual jacks. The commercial-grade motor is designed for thousands of lifting cycles with minimal maintenance requirements.
The pneumatic safety lock system provides rock-solid security at multiple height positions. This redundant safety mechanism functions independently from the hydraulic system, ensuring vehicles remain securely elevated even during extended work sessions. The 87-116 PSI (6-8 bar) air requirement integrates with standard shop compressor systems.
The precision-engineered scissor mechanism distributes weight evenly across the entire lifting structure, eliminating stress points that could compromise long-term durability. This sophisticated load distribution technology results from decades of automotive lift engineering refinement, creating exceptional stability during both lifting operations and while supporting vehicles at working height.
Versatile Installation Options for Any Workspace
The KATOOL X90E's thoughtful design accommodates various installation scenarios:
The mid-rise scissor configuration allows for both surface mounting and flush mounting options. Surface mounting provides the quickest installation with no concrete work required, while flush mounting creates a completely flat floor when the lift is fully lowered - perfect for multi-purpose spaces where vehicles might need to drive over the lift area when not in use.
With no overhead structure requirements, the X90E fits perfectly in spaces with limited ceiling height. This critical advantage over two-post and four-post lifts makes it ideal for residential garages, small commercial spaces, or any situation where overhead clearance is restricted. Many standard residential garages can accommodate this lift where taller models simply wouldn't fit.
The lift's self-contained design requires minimal ancillary components, simplifying installation and reducing the total footprint needed. The compact power unit can be positioned according to workspace requirements, while the minimal hydraulic line routing creates a clean, professional installation. This streamlined design maximizes the usable space around the lift area.
Practical Features That Enhance Daily Use
The X90E includes thoughtful details that improve functionality and user experience:
The automatic safety lock system engages mechanical locks as the lift rises, providing redundant protection beyond the hydraulic system alone. This multi-point locking mechanism ensures vehicles remain securely elevated even during extended work sessions, allowing complete confidence when working underneath. The pneumatically-powered lock release system makes lowering operations quick and straightforward.

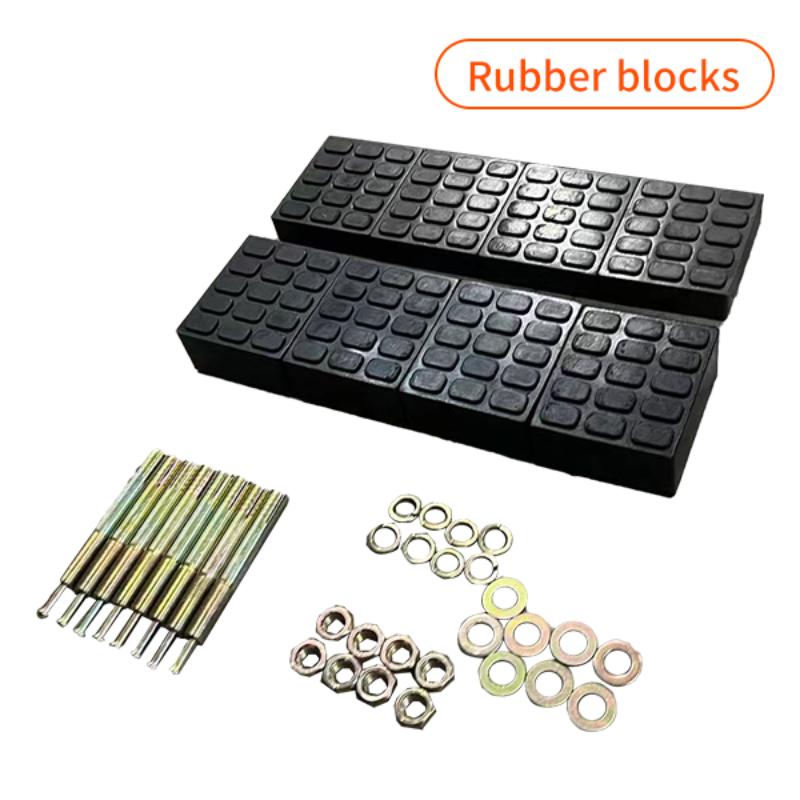

The robust lifting pads include adjustable height adapters to accommodate various vehicle lifting points. This adaptability ensures proper contact with manufacturer-recommended lifting surfaces regardless of vehicle design. The carefully engineered pad design prevents damage to vehicle undercarriages while providing secure lifting support.

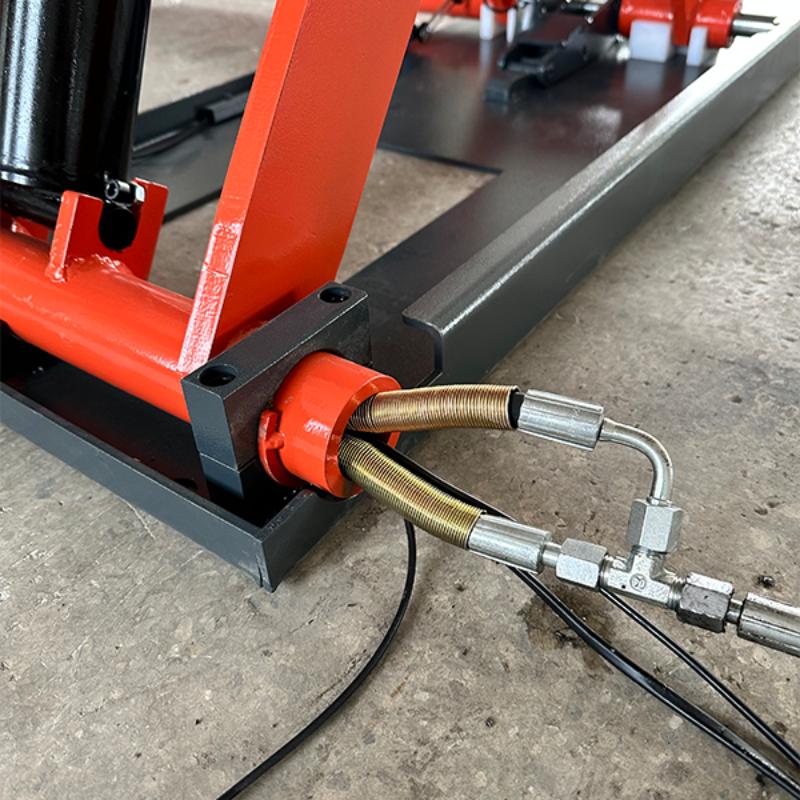

The commercial-grade hydraulic system uses high-pressure cylinders and precision valves to ensure smooth, controlled lifting and lowering operations. This sophisticated hydraulic technology eliminates the jerky movements common in lesser lifts, providing professional-grade performance that protects both vehicles and operators. The hydraulic components are sized for years of reliable service with minimal maintenance requirements.
The Perfect Addition to Serious Home Garages and Professional Shops
The KATOOL X90E represents an exceptional value proposition for various users:
For home mechanics, this lift transforms a standard garage into a professional-grade workspace. The ability to perform maintenance at a comfortable standing height not only makes work more enjoyable but also enables tackling more complex projects with confidence. Many home mechanics report completing jobs in half the time after adding a quality mid-rise lift to their garage.
For small professional shops, the X90E offers commercial-grade lifting capacity without requiring the structural modifications often needed for larger two-post lifts. The impressive 8000-pound capacity handles most passenger vehicles while the space-efficient design maximizes limited shop floor space. The quick 30-second lifting time improves shop throughput and profitability.
For enthusiast clubs and shared workspaces, this lift provides versatile capabilities that accommodate various vehicle types. The straightforward operation allows multiple users to safely operate the equipment with minimal training, while the robust construction withstands frequent use by different operators. The professional-grade components ensure reliable performance even in these demanding multi-user environments.
Experience professional-level automotive maintenance in your own workspace! Add the KATOOL X90E 8000 lbs Mid-Rise Scissor Lift to your cart today and transform the way you work on vehicles. With its impressive capacity, rapid 30-second lift time, and rock-solid safety features, you'll complete maintenance tasks faster, more comfortably, and with greater confidence than ever before. Don't spend another day crawling around on concrete or wrestling with inadequate jack stands – upgrade to the lifting solution trusted by serious mechanics everywhere.
