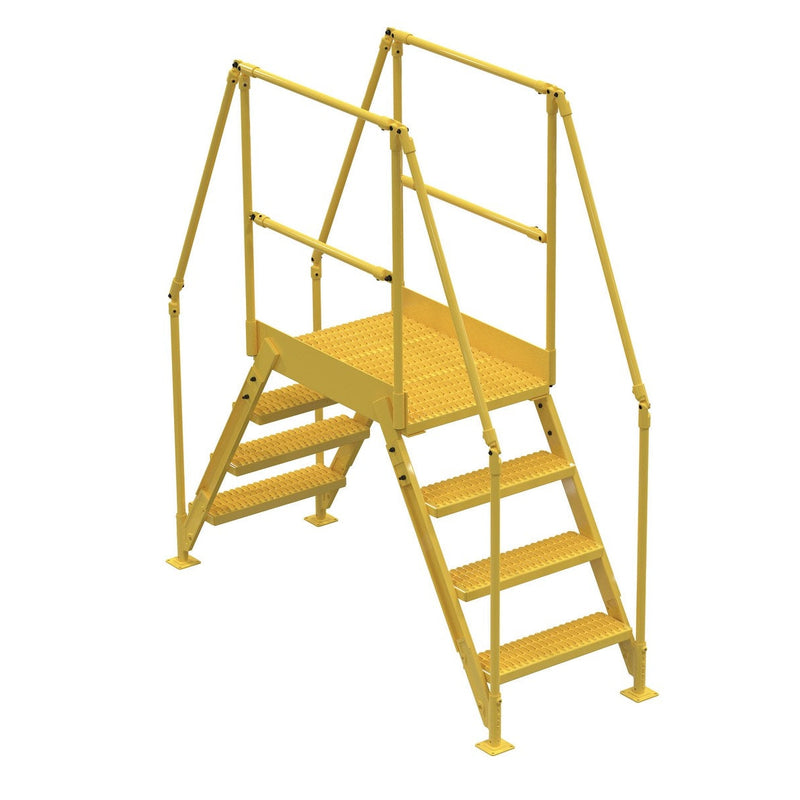

Steel Crossover Ladder 4 Steps

Mount where you need permanent access at crossover points. The upper platform features removable two sided 42-5/8" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off. Serrated steps for extra grip and safety are 23-1/2" wide and 7" deep with a step spacing of 10". The angle of the steps is 58 degrees. The overall ladder width is 29-1/4". Ground legs include floor mounting pads. Units must be anchored to the floor. Units are all welded steel construction but can be knock-down for storage and shipping. Uniform capacity is 500 pounds. Meets ANSI A14.7 and OSHA 29 CFR 1910.24. Baked-in powder coat finish for added toughness.

What do you get when choosing the Steel Crossover Ladder with small platform?

• Meets OSHA 29 CFR 1910.24 and ANSI A14.7 standards
• Serrated steps for extra grip and safety
• 100% Welded steel construction offers rugged long lasting use
• Ground legs include rubber feet for safety and stability

Tecnical Information:

• Uniform Capacity (lb.): 500

• Platform Height (in.): 40
• Platform Width (in.): 23-1/2
• Platform Length (in.): 36
• Handrail Height (in.): 42-5/8
• Mid-Rail (in.): 21
• Toeboard (in.): 4
• Step Width (in.): 23-1/2
• Step Depth (in.): 7
• Step Spacing (in.): 10
• Step Angle (degrees): 58
• Number of Steps: 4
• Clearance Span Width (in.): 26-1/8
• Clearance Span Height (in.): 38-1/4
• Overall Span Width (in.): 79
• OSHA: 29 CFR 1910.24
