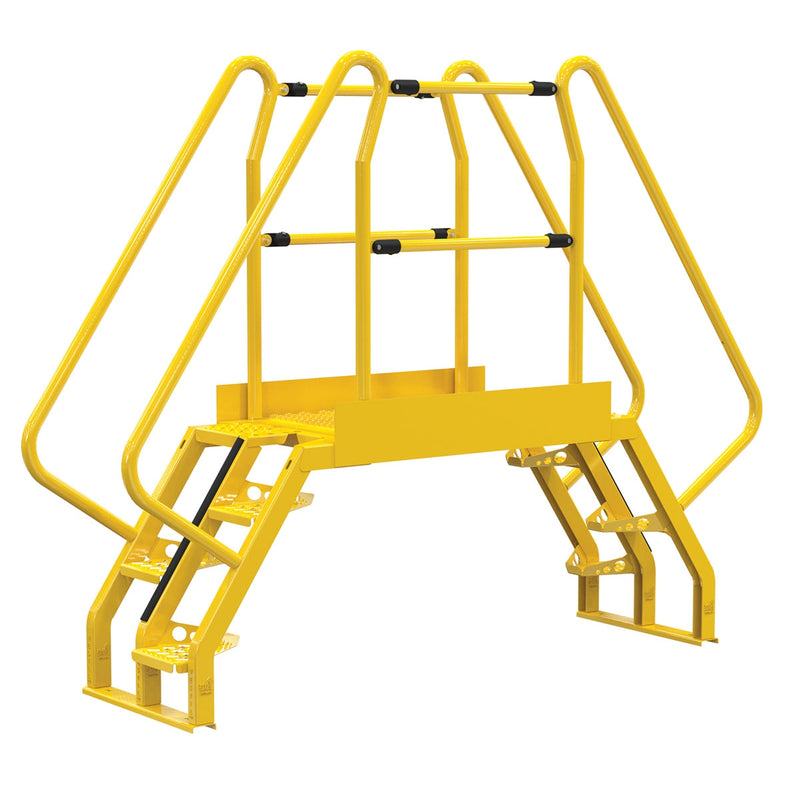

Alternating Step Cross-Over Ladder 8 Steps

What do you get when choosing the Cross-Over Ladder with alternating steps?

Mount where you need permanent access at crossover points. Alternating step design for shorter overall span than other units. The upper platform features removable two sided 39" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off. Usable width is 20-1/16" between handrails. Heavy-duty uniform capacity rating of 350 pounds per unit. Includes lag-down points for securing to floor, mounting hardware not included. Steel construction with baked-in powder-coated finish for added toughness. Meets OSHA STD 01-01-011 and ANSI A14.7 standards.

• Alternating step design offers shorter overall span than other units
• Pre-drilled lag-down points make installation quick and easy
• Two-sided hand railing provides adder user safety
• Meets OSHA STD 01-01-011and ANSI A14.7 standards

Tecnical Information:

• Uniform Capacity (lb.): 350,
• Number of Steps on Each Side: 4
• Clearance Span Height (in.): 26-13/16
• Clearance Span Width (in.): 38
• Step Angle (degrees): 56
• Platform Handrail Height (in.): 39
• Platform Mid-Rail (in.): 21
• Toeboard (in.): 4
• Usable Width between Handrails (in.): 20-1/16
• Step Width (in.): 9-1/8
• Step Depth (in.): 10-1/2
• Base Width (in.): 23-11/16
• Tread: Serrated ANSI: A14.7
• OSHA: STD 01-01-011
